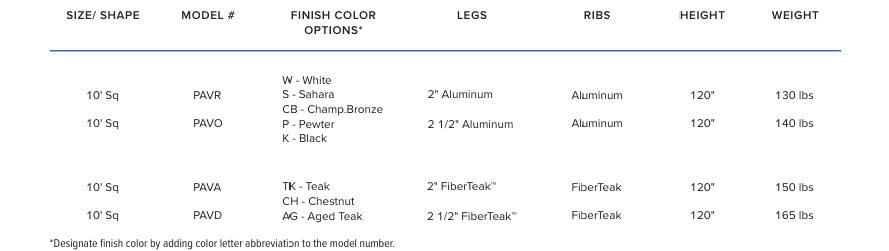

Size/Shape Model # Pole Type Fiberglass Ribs Lift Height Weight (lbs)
10′ Sq PAVR W – White
S – Sahara
CB – Champ.Bronze
P – Pewter
K – Black
TK – Teak
CH – Chestnut
AG – Aged Teak		 2″ Aluminum Aluminum 120″ 130 lbs
10′ Sq PAVO W – White
S – Sahara
CB – Champ.Bronze
P – Pewter
K – Black
TK – Teak
CH – Chestnut
AG – Aged Teak		 2 1/2″ Aluminum Aluminum 120″ 140 lbs
10′ Sq PAVA W – White
S – Sahara
CB – Champ.Bronze
P – Pewter
K – Black
TK – Teak
CH – Chestnut
AG – Aged Teak		 2″ FiberTeak FiberTeak 120″ 150 lbs
10′ Sq PAVD W – White
S – Sahara
CB – Champ.Bronze
P – Pewter
K – Black
TK – Teak
CH – Chestnut
AG – Aged Teak		 2 1/2″ FiberTeak FiberTeak 120″ 165 lbs

Pavilion

These semi-permanent structures provide a 100 square feet for private dining or lounging at resorts, country clubs, parks and party areas. The double vented canopy is designed to handle gusty winds. The side panel drapes can be tiedback or zippered close.

  • Semi-permanent shade structure
  • Umbrella style canopy with fiberglass ribs, molded nylon joints and end tips
  •  Frame available in heavy duty aluminum or FiberTeak™ simulated wood
  •  Welded aluminum connectors
  •  Legs have anchor plates with holes for mounting
  •  Standard canopies with double vent and valance are made of marine or furniture grade, solution dyed acrylic.
  • Side panels are made of furniture grade fabric. See fabric selections on pages 66-71. Tops are also available in COM.
  • Side panels can be zipped closed
  • Velcro tiebacks secure side panels to the frame
  • Options include 4″ band in coordinating fabric (at bottom of valance, bottom of drapes, and for tiebacks)
  • Optional Light and Fan Kit: 48″ overall length.
  • Dual 14″ diam. cage fans, rotates 360 degrees for optimal circulation. Aged Bronze and Stainless Steel finishes.
  • Battery operated remote control included

Fabric Options

FiberBuilt offers over 450 high quality, durable Marine and Furniture Grade solution-dyed acrylics that allow you to choose the colors and patterns to make your outdoor décor exceptional.

Click Here

Logo

For truly distinctive shade products, consider adding your property name or logo. We can silk screen or embroider logos onto the valance or panel of umbrellas, Cabanas, and Pavilions. You can choose to place them just once per umbrella, on alternating panels or on every panel. Contact our office to discuss this branding option in greater detail.

Product Details Download
