UMBRELLA BASES
Selecting the proper base for your umbrella is very important. The base for your umbrellas will be determined by several factors: Will it be “Free Standing” or placed inside a table, the size of the canopy and the potential wind load in the area of use. Each of our base styles below come in specific colors and finishes.
Umbrellas must be secured into properly weighted bases. This is especially crucial for umbrellas used on upper floors, rooftops and windy locations.

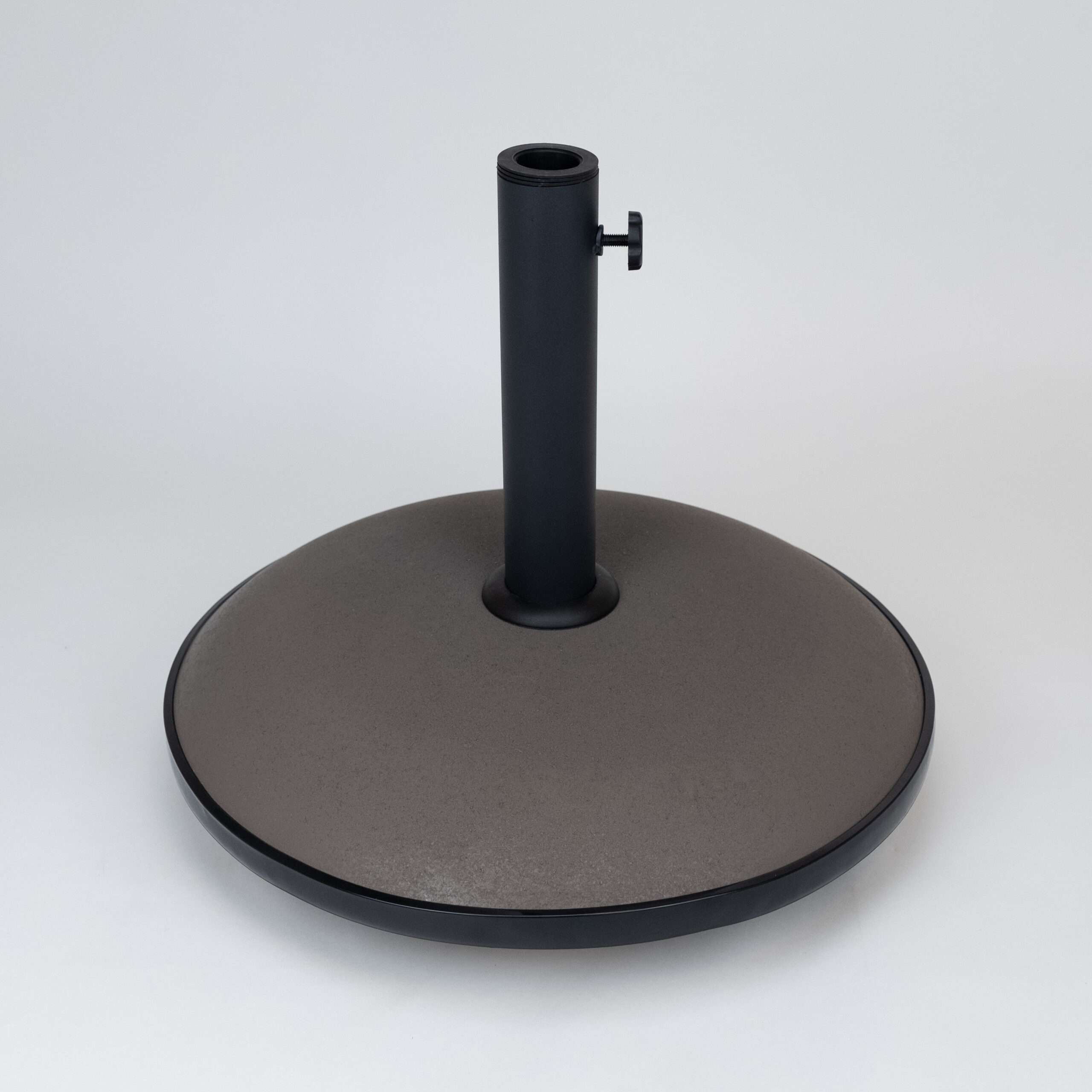

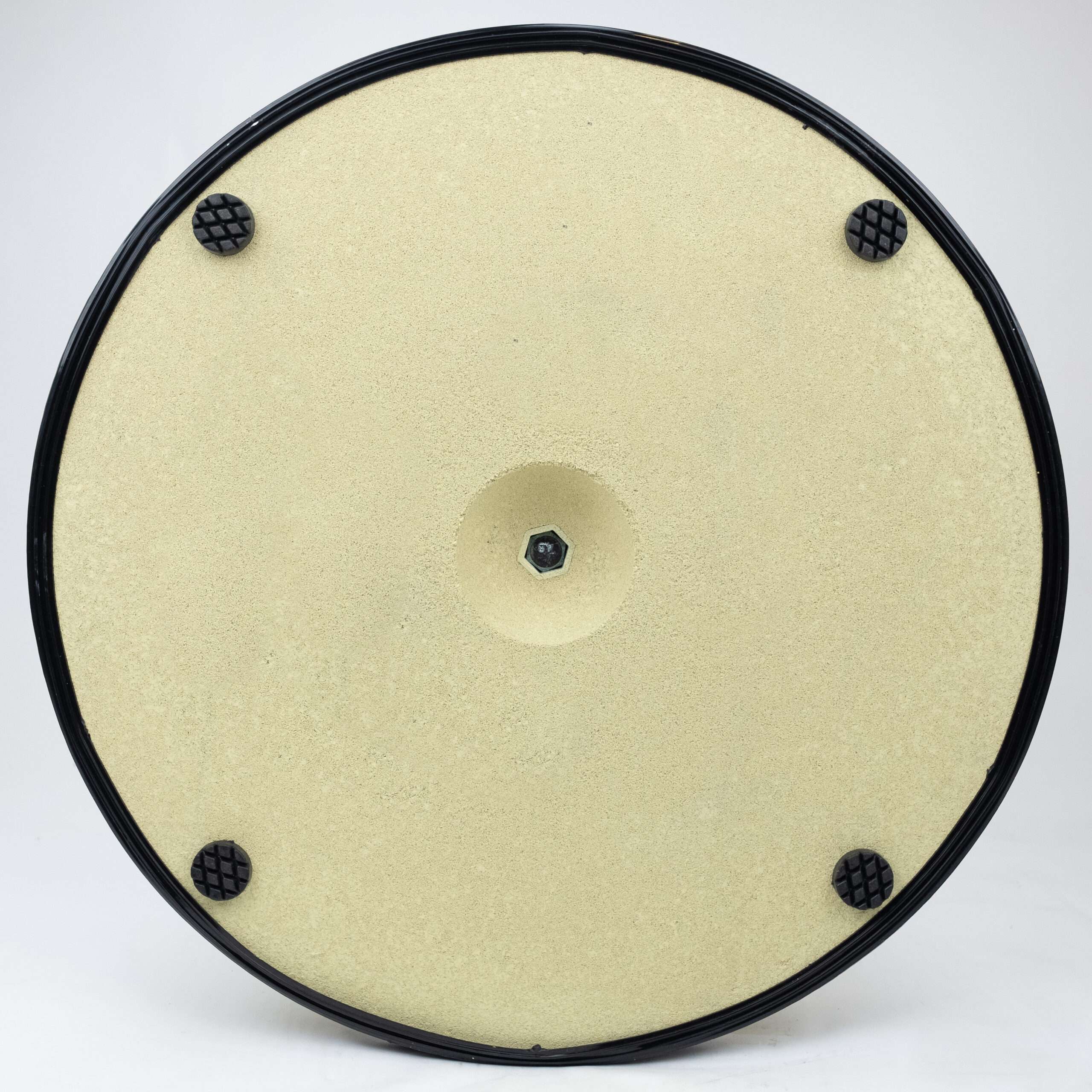

Concrete Bases

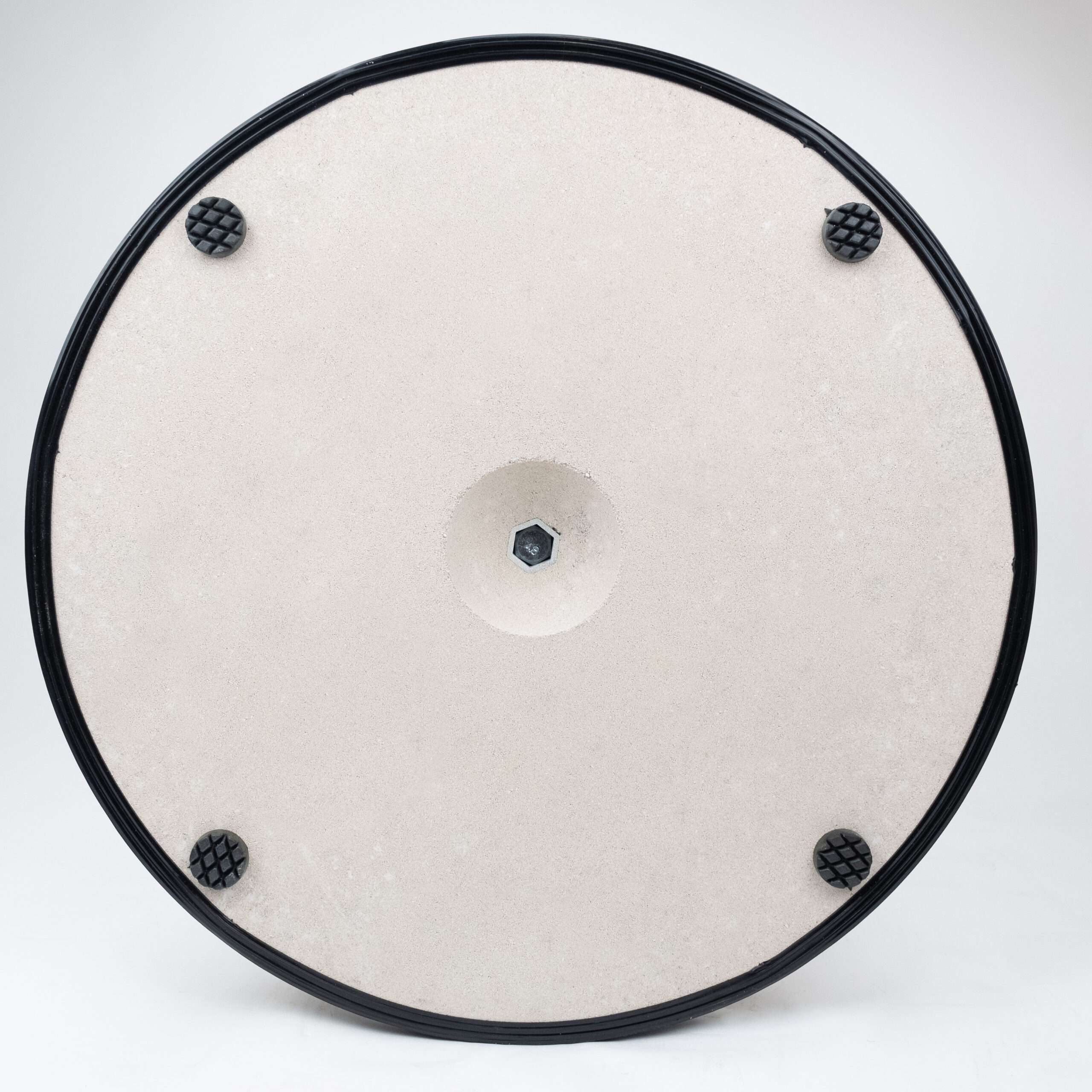

Our economical solid concrete bases are available in four finish colors and have a protective black sleeve and trim. Works best under the table. Available without wheels only.
Recommended for use with 7.5′, 8′ and 9′ umbrellas.
Dimensions:
- CB19 – 19″ diam x 14″ oah – 55 lbs
- CB23 – 23″ diam x 18″ oah – 110 lbs
- Weight: CB19 – 55 lbs, CB23 – 110 lbs
- All bases come with black trim
- Standard black sleeve accommodates poles up to 1.75″ in diameter
- Some assembly required

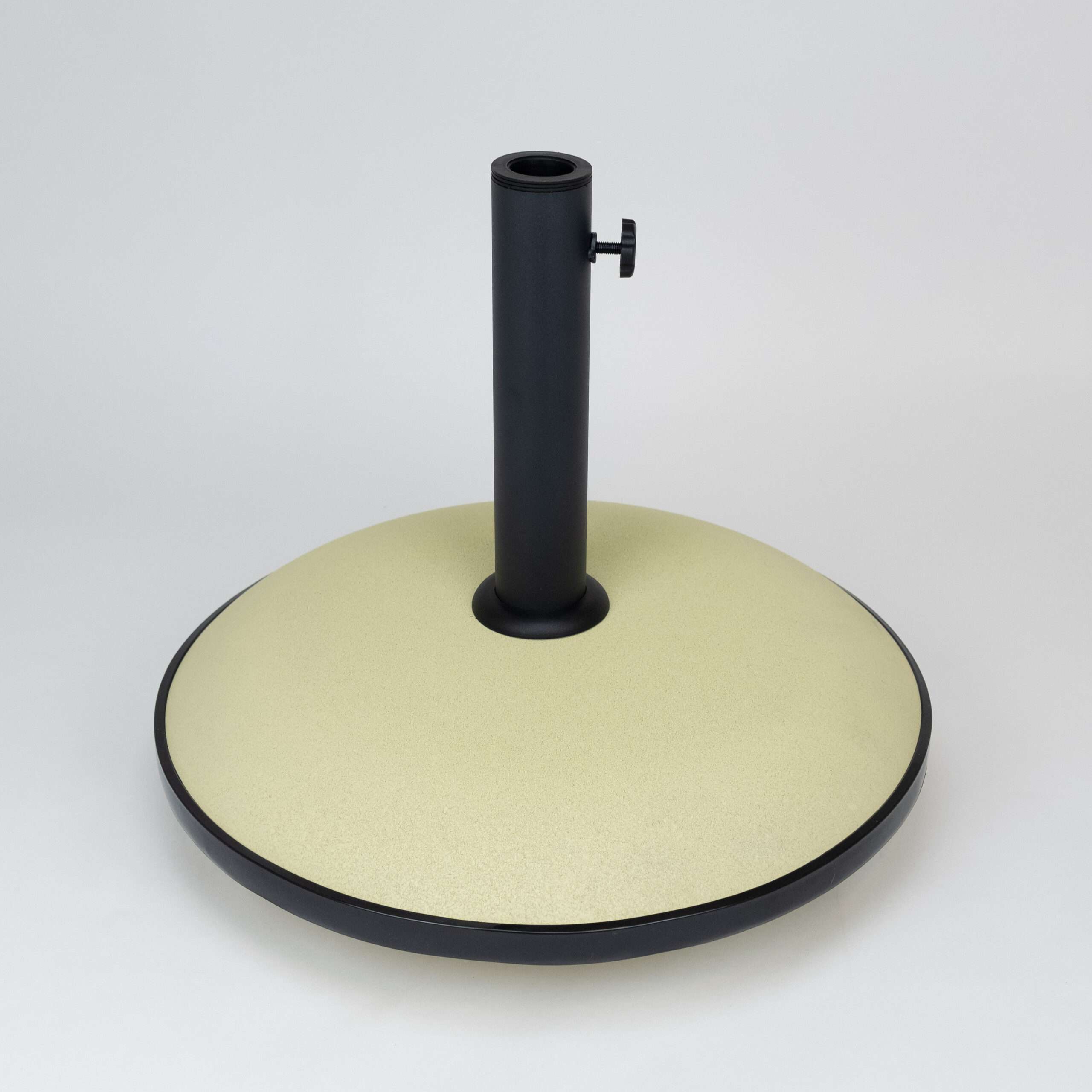

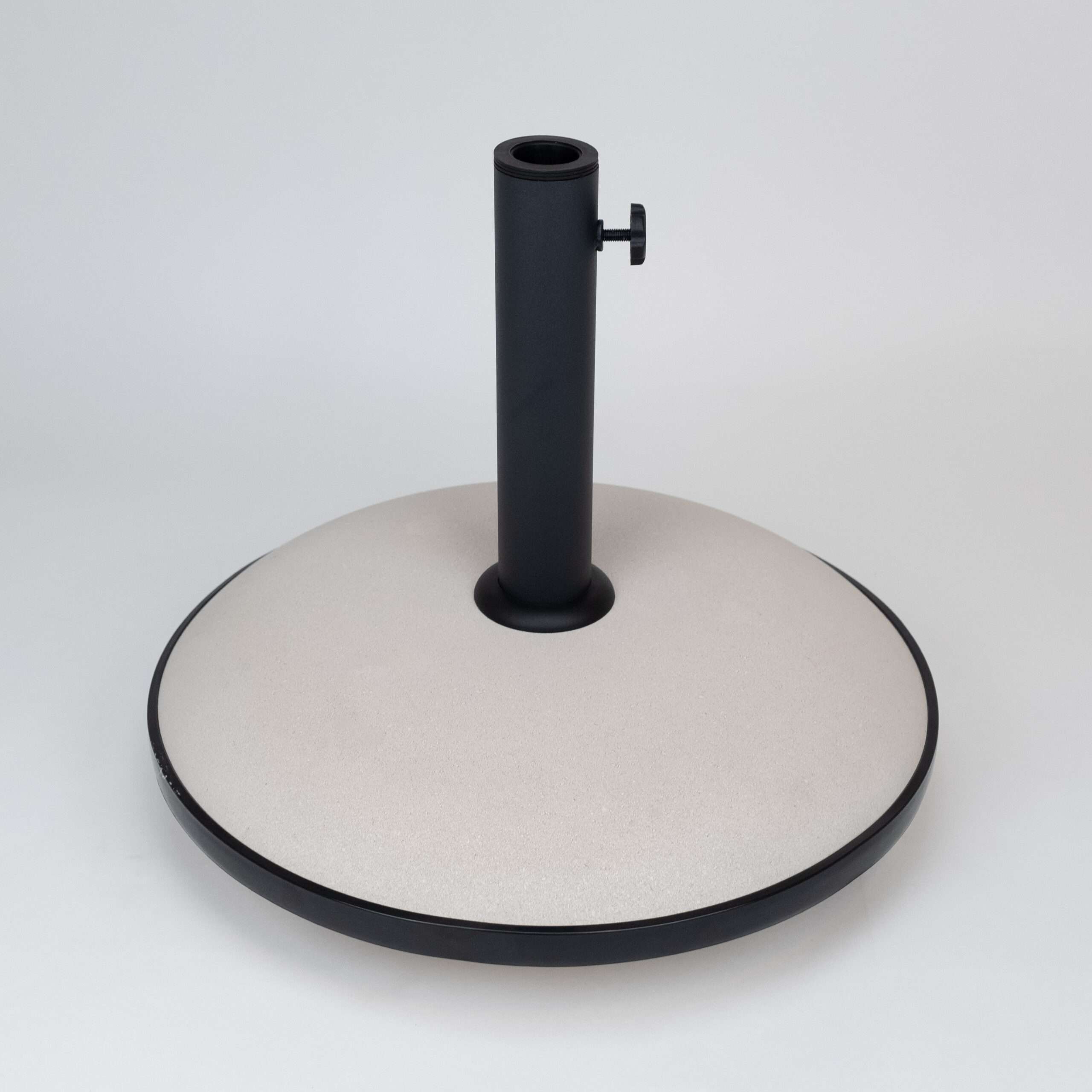

- CB19 available in White CB19W, Beige CB19B, Black CB19K, Champagne Bronze CB19C
- CB23 available in Black only CB23K
*This base is not manufactured in USA
| BASE MODEL | CANOPY SIZE | |||||||
| MODEL # | WEIGHT | SIZE | OVERALL HEIGHT | 7 1/2′ – 8′ DIAM | 9′ DIAM | 11′ DIAM | 6′ SQ | 7 1/2′ SQ |
| CB19 | 55 | 19″ Diam | 14″ | T | T | T | T | |
| CB23 | 110 | 23″ Diam | 19″ | F | F | F | F |
T: Umbrella is placed within a Table F: Umbrella is Freestanding

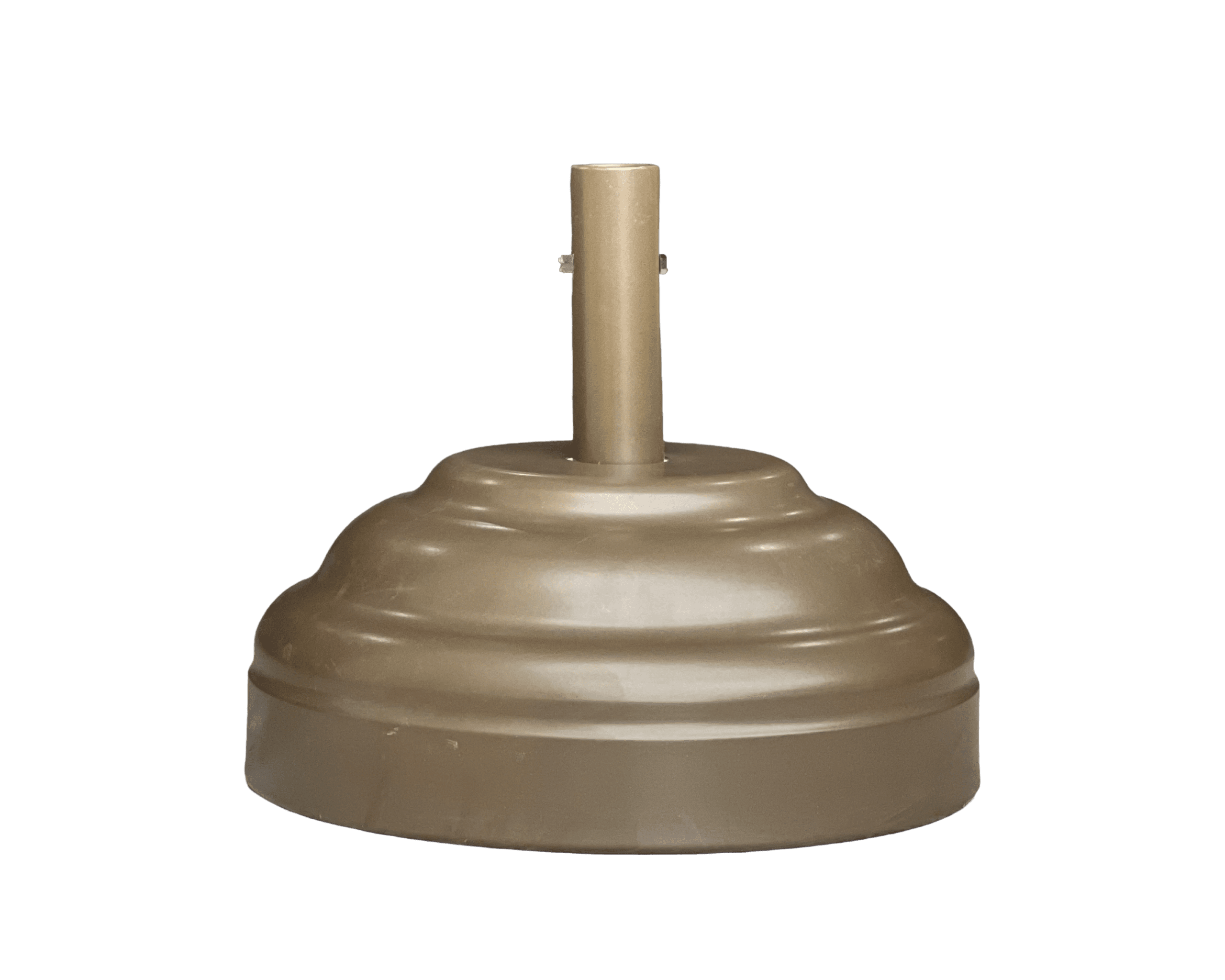

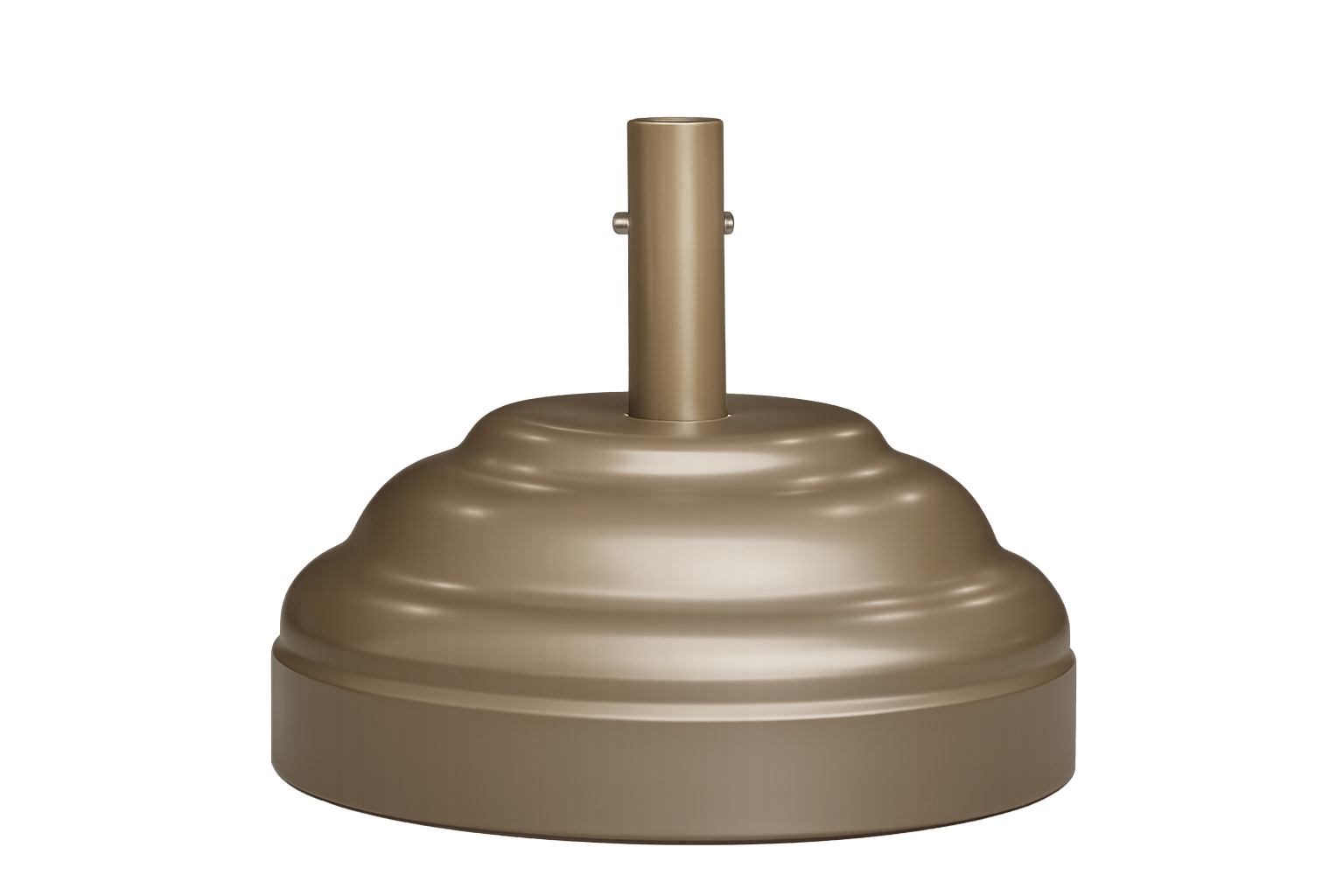

Aluminum Bases
Contemporary smooth style
– Available in seven colors
– Base sleeve with through bolt to secure umbrella
– All models ship filled with concrete
– Instructions included. Some assembly and tools required.
– Base must be ordered with the proper sleeve size.
Add to model number:
– 2 for 1 1/2″, 1 3/4” and 2″ poles, and -25 for 2 1/2″ pole
| BASE MODEL | CANOPY SIZE | ||||||||
| MODEL # | WEIGHT | SIZE | OVERALL HEIGHT | 7 1/2′ – 8′ DIAM | 9′ DIAM | 11′ DIAM | 6′ SQ | 7 1/2′ SQ | 10′ SQ |
| AB110 | 115 | 23″ Diam | 12″ | F | F | T | F | T | |
| AB160 | 160 | 23″ Diam | 12″ | F | F | F | F | F | |
| AB175 | 175 | 26″ Diam | 12″ | F | F | F | F | F | F |
| ABW110 | 110 | 23″ Diam | 18″ | F | F | T | T | T | |
| ABW175 | 175 | 26″ Diam | 18″ | F | F | F | F | F | F |
T: Umbrella is placed within a Table F: Umbrella is Freestanding

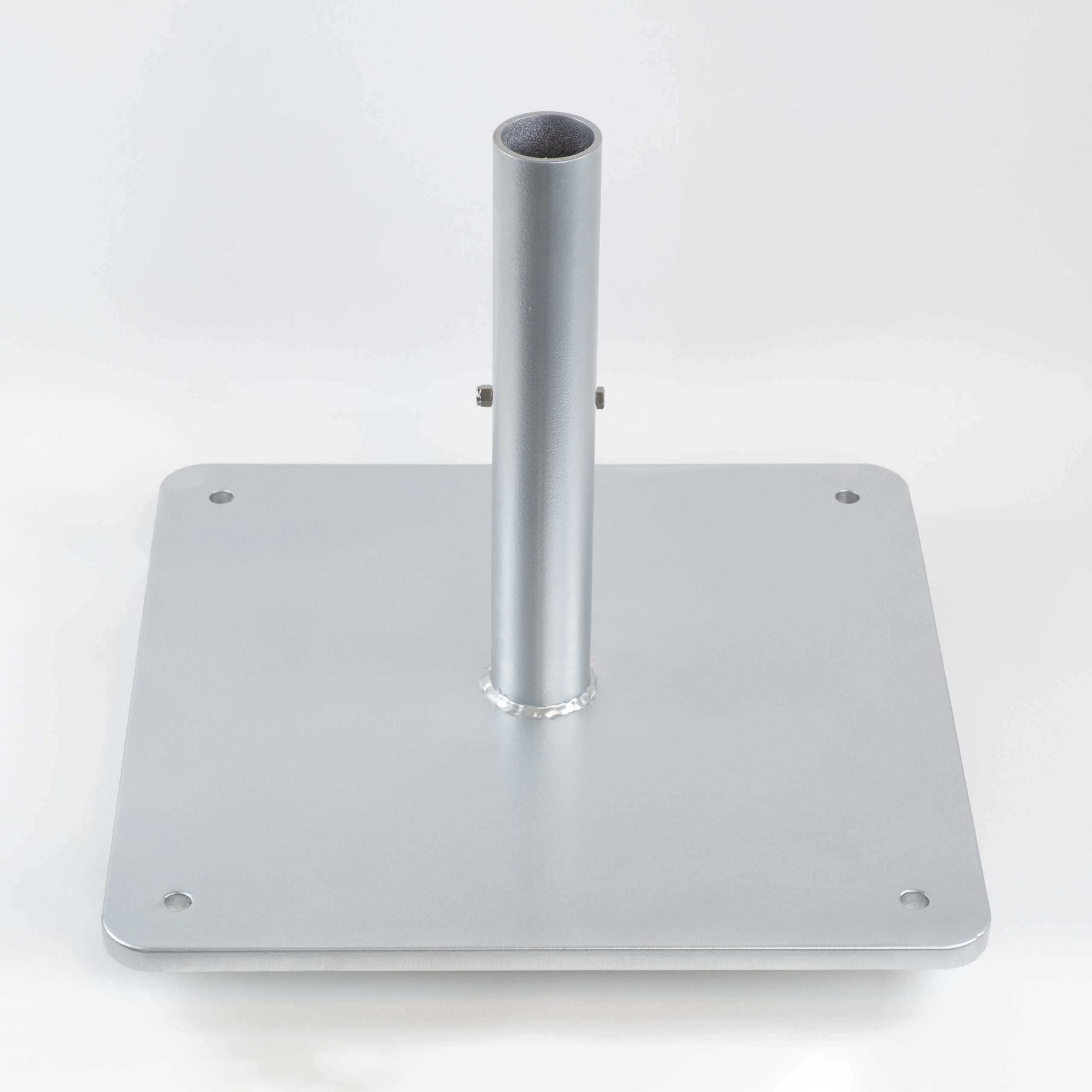

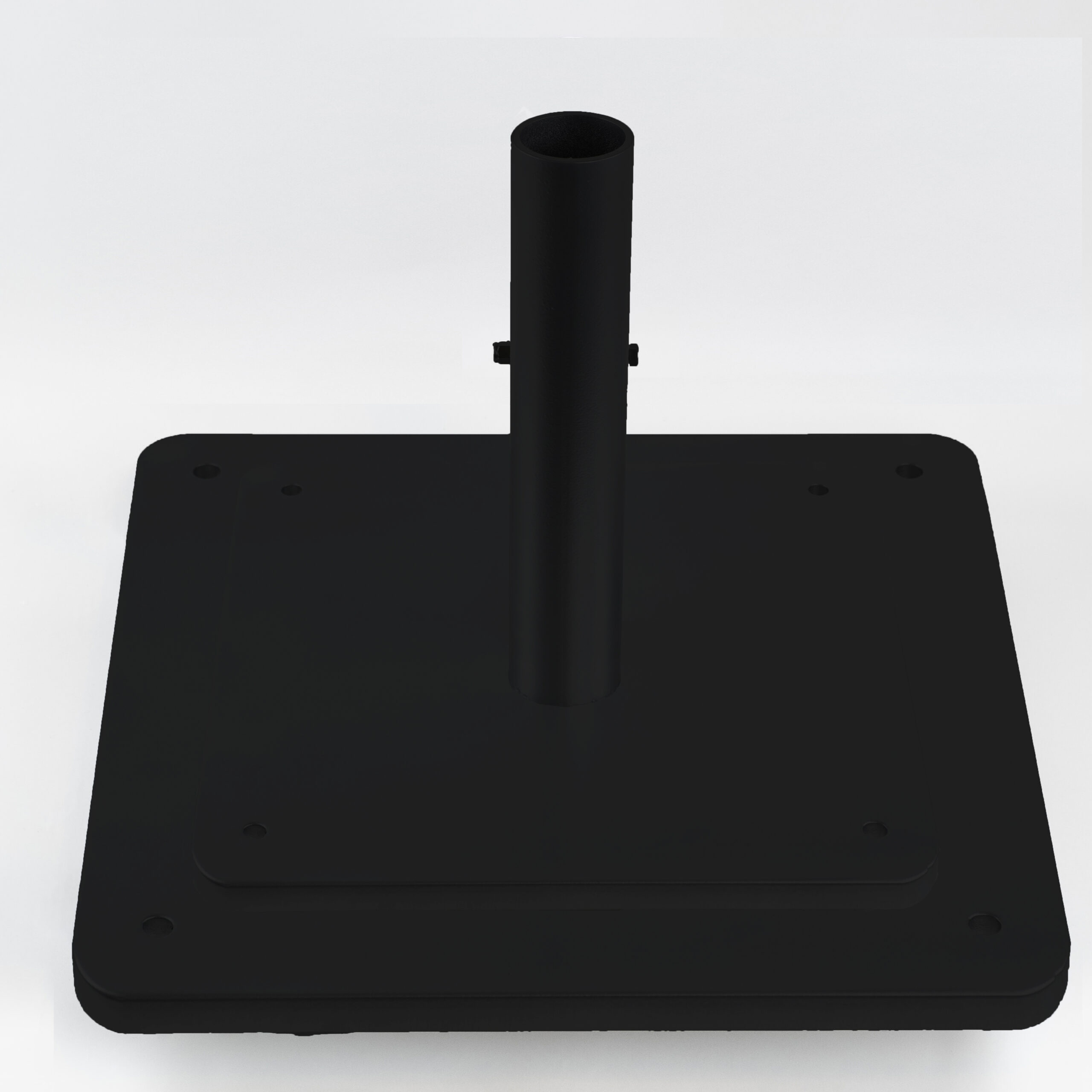

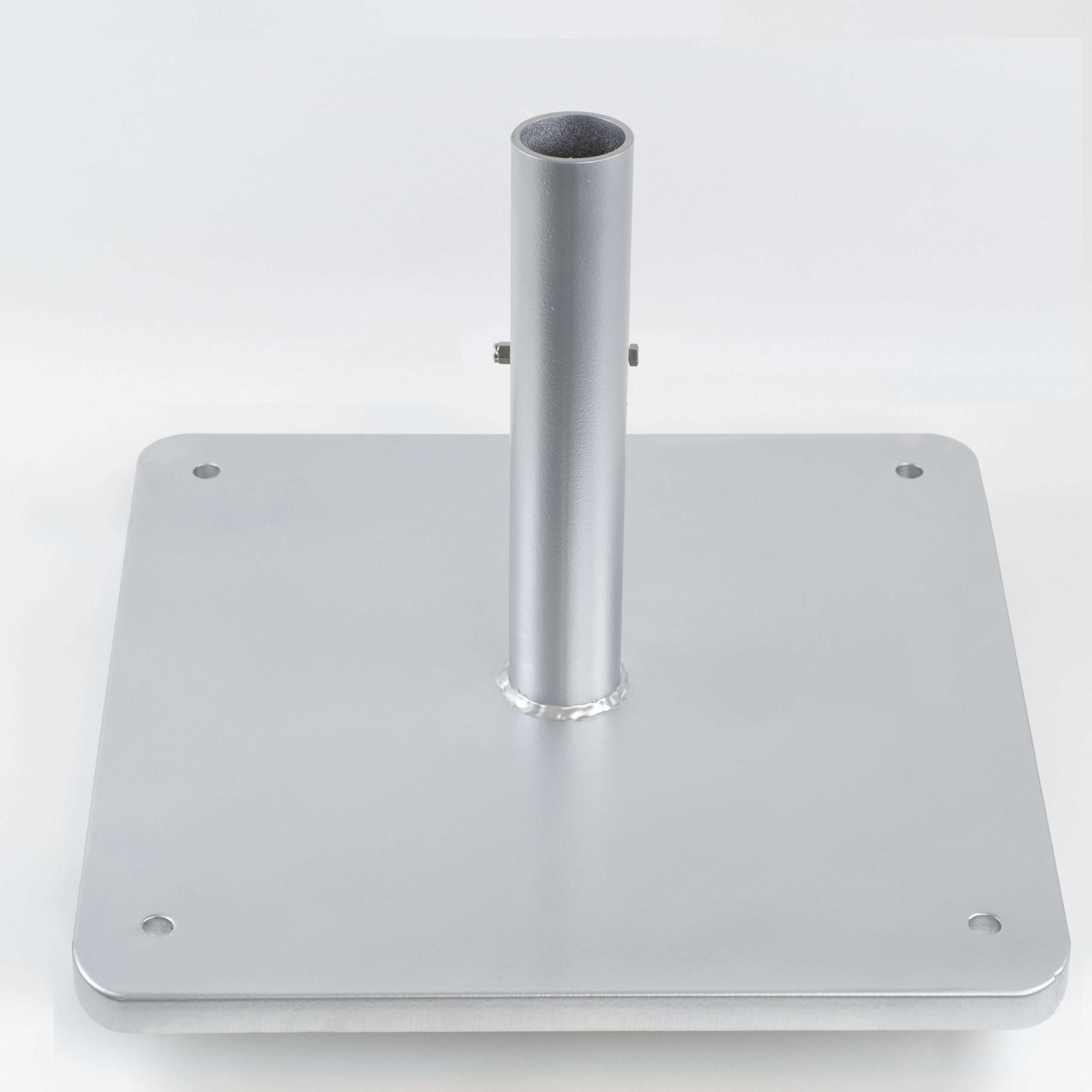

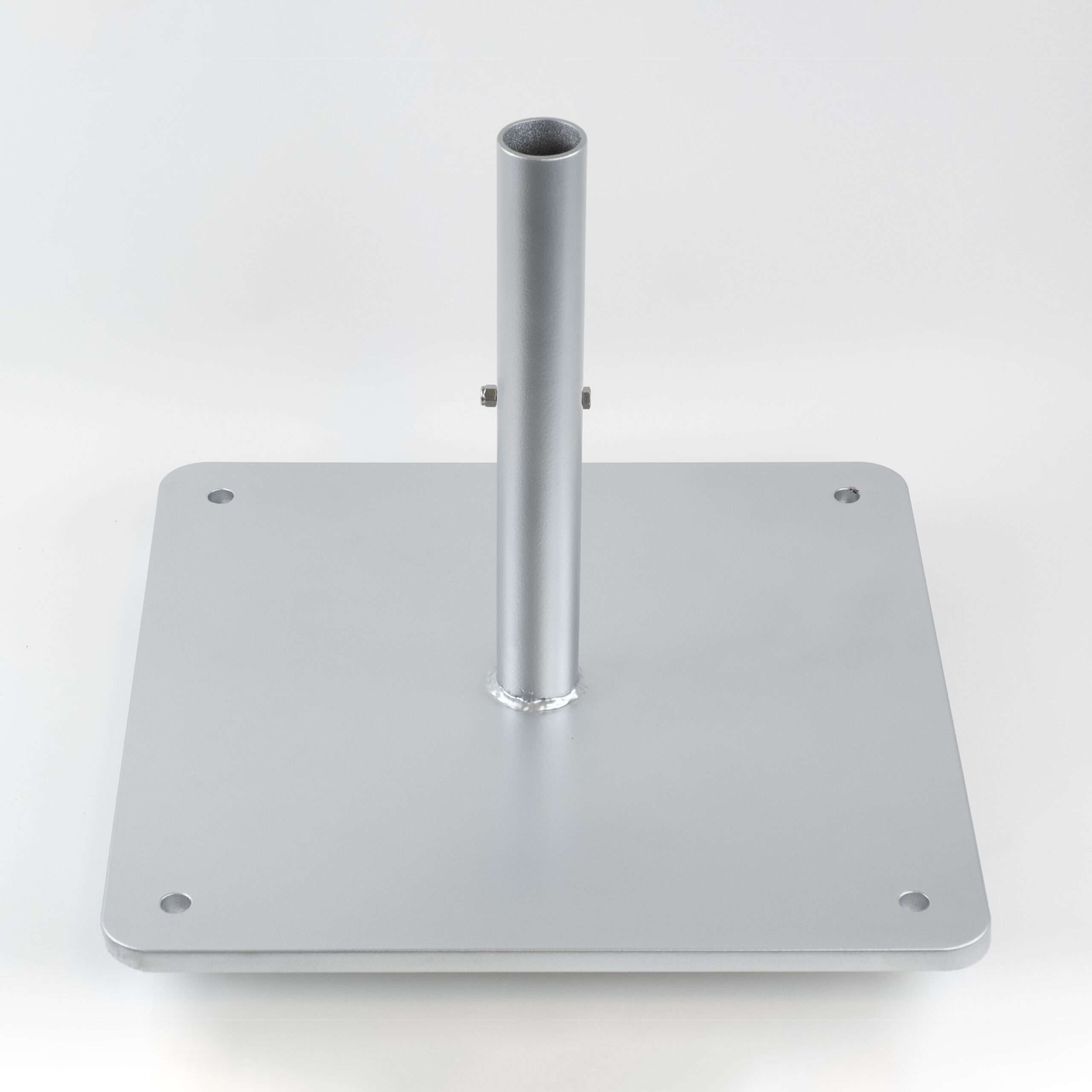

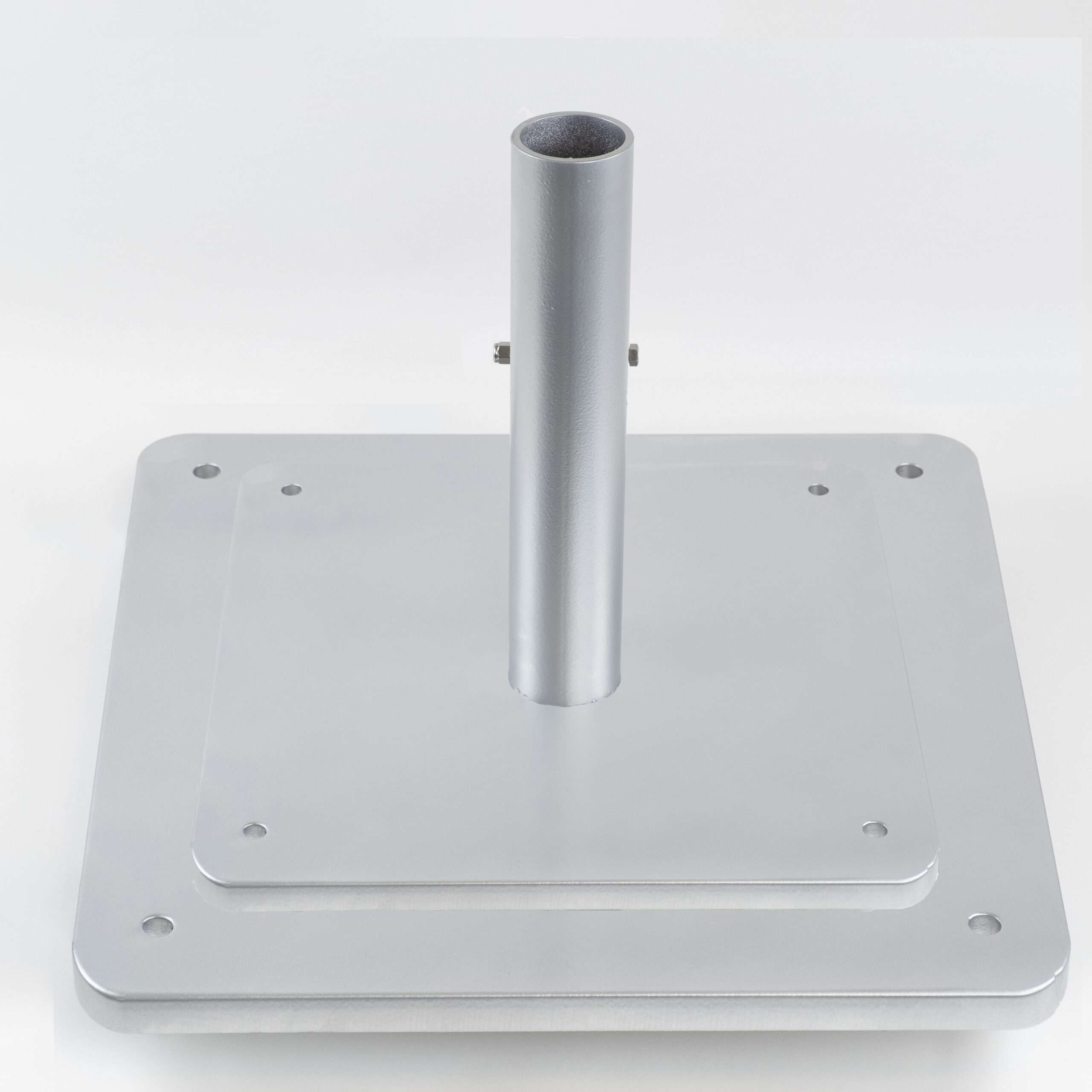

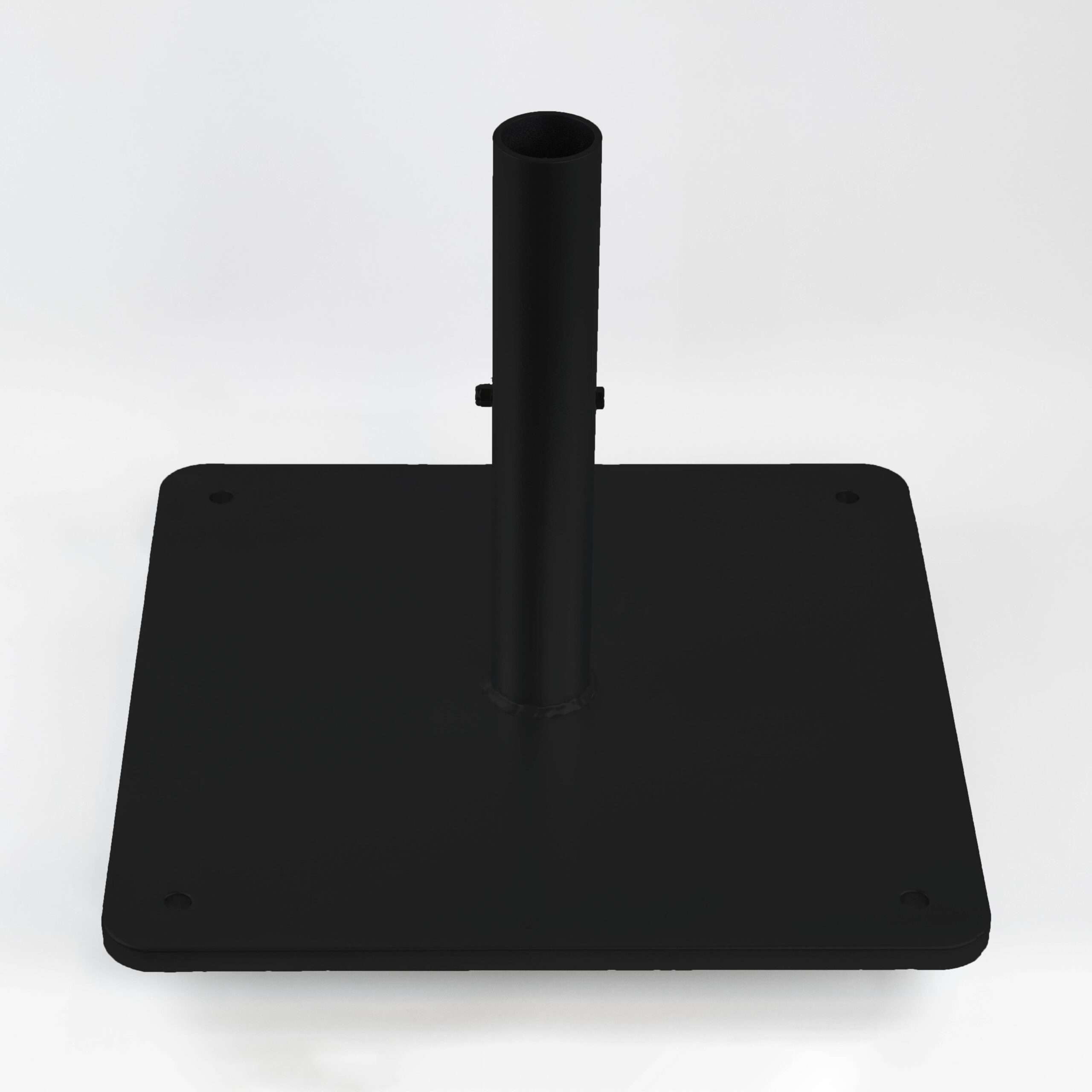

Steel Bases
- Available in 3 weights: 85 lb, 130 lb and 200 lb
- Low profile steel base with welded base sleeve
-
Galvanized and finished in silver and black
- Through bolt to secure umbrella
- Wheeled styles have “W” in model numbers
- Base must be ordered with the proper sleeve size.
Add to model number: 2 for 1.5″ pole & 2″ poles, 25 for 2.5″ pole.
SBG85, SBG130 and SBG200 stationary (without wheels)

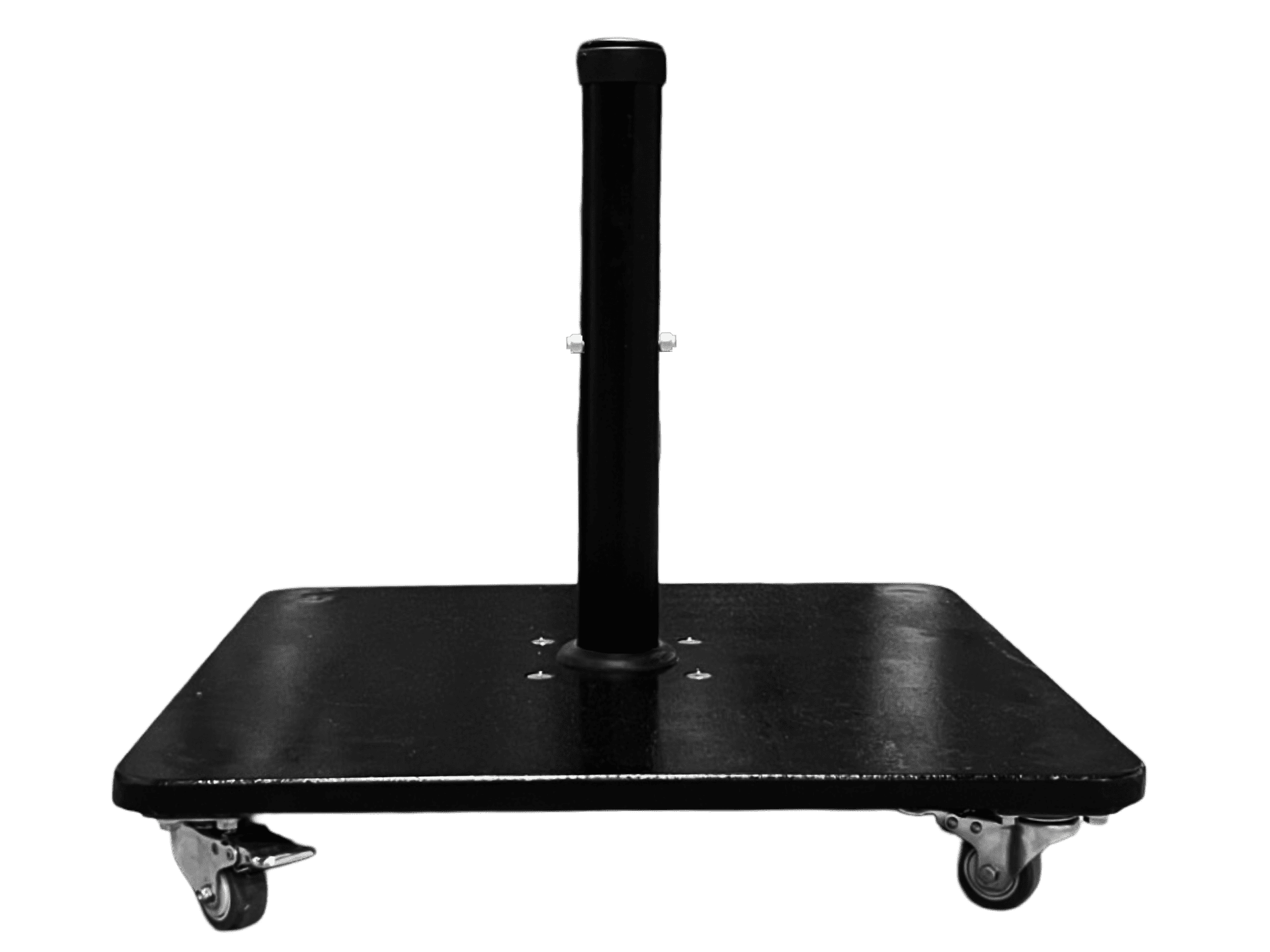

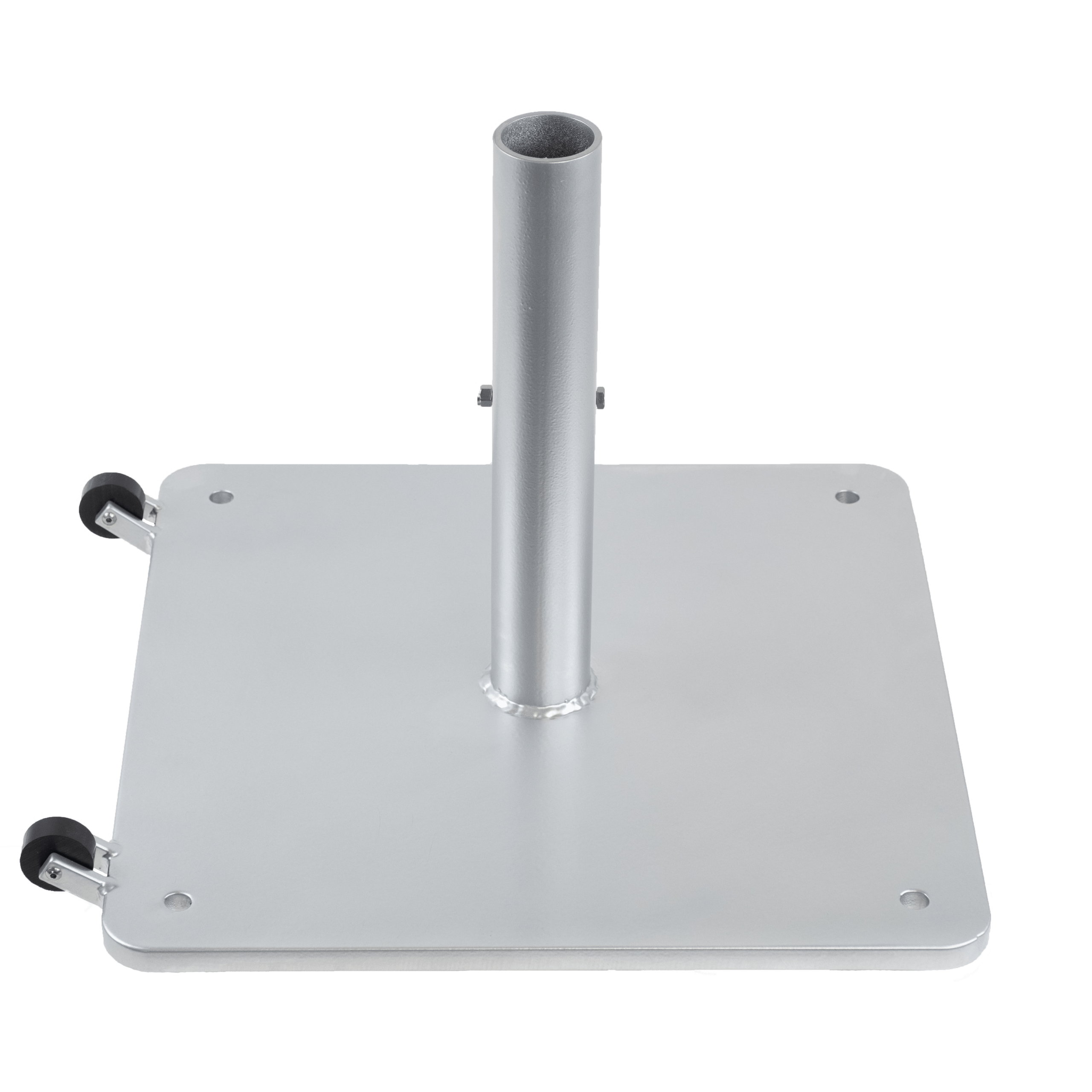

SBGW130 and SBGW200 with wheels
| BASE MODEL | CANOPY SIZE | ||||||||
| MODEL # | WEIGHT | SIZE | OVERALL HEIGHT | 7 1/2′ – 8′ DIAM | 9′ DIAM | 11′ DIAM | 6′ SQ | 7 1/2′ SQ | 10′ SQ |
| SBG85 | 85 | 24″ Sq | 18″ | T | T | T | |||
| SBG130 | 130 | 24″ Sq | 18″ | F | F | T | F | T | |
| SBG200 | 200 | 30″ Sq | 18″ | F | F | F | F | F | F |
| SBGW130 | 130 | 24″ Sq | 18″ | F | F | T | T | T | |
| SBGW200 | 200 | 30″ Sq | 18″ | F | F | F | F | F | F |
T: Umbrella is placed within a Table F: Umbrella is Freestanding

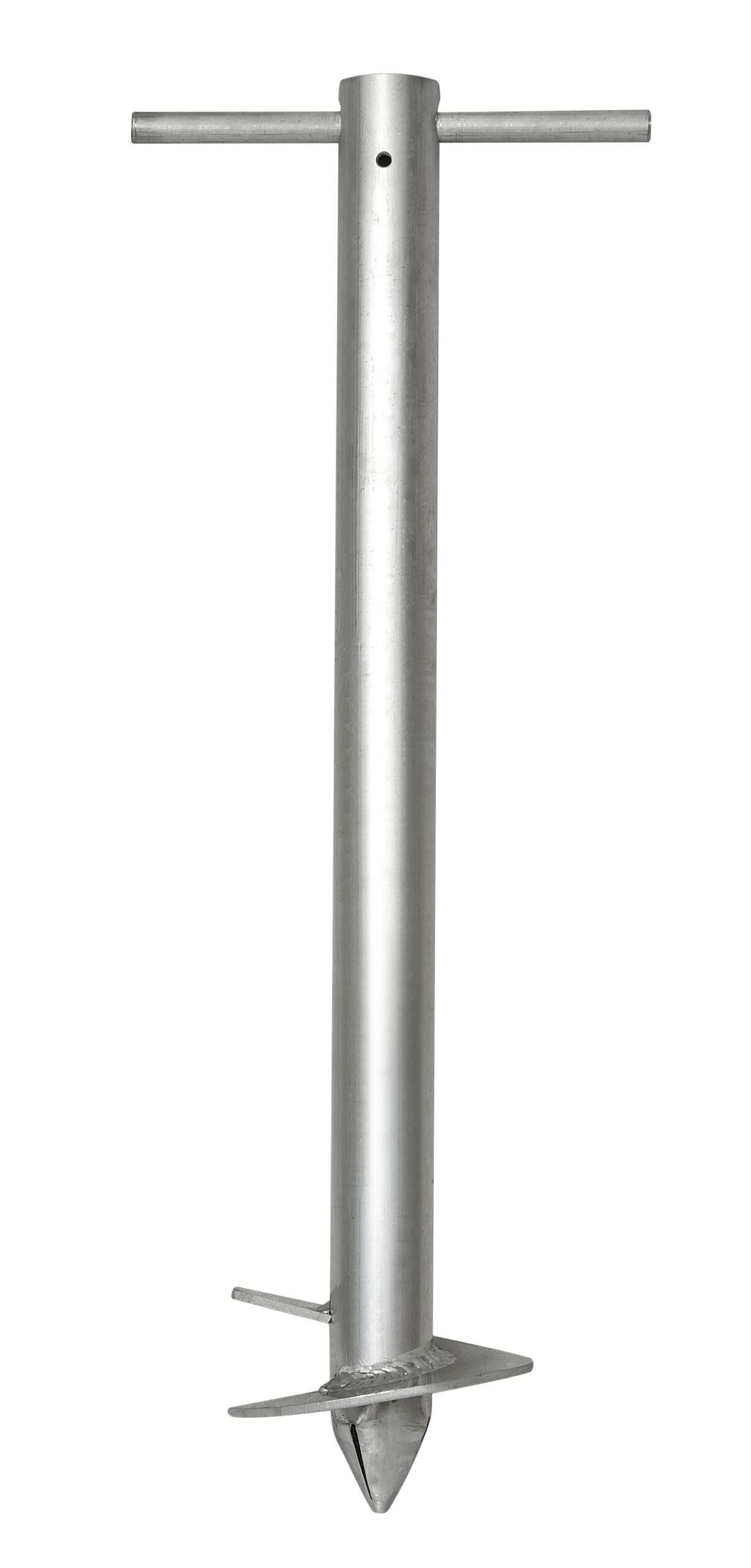

Sand Auger
- Auger anchors umbrella into beach sand or dirt and provides housing for umbrella pole
- Corrosion and weather-resistant heavy-duty aluminum
- Welded rotor and included handle (not shown) provides maximum torque for easy installation and removal
-
27″ overall height
-
6″ diam fin
-
Aluminum pole with .125 wall thick-ness
-
Mill finish
-
Fits 1 1/2″ diam umbrella pole
-
Removable rotator handle included
-
Carved spacers allow water and sand to drain out.
Inground Mount
-
12” overall height
-
5” diam top plate
-
Schedule 40 aluminum pipe
-
Mill finish
-
Cover plate keeps debris from clogging tube when umbrella has been removed
| MODEL # | POLE DIAM | MATERIAL | FINISH |
|
MT-DECK-LID-1 |
1 1/2” |
Aluminum |
Mill finish with cover plate |
|
MT-DECK-LID-2 |
2” |
Aluminum |
Mill finish with cover plate |
|
MT-DECK-LID-25 |
2 1/2” |
Aluminum |
Mill finish with cover plate |
